Digital Multimeter NCV Auto-Ranging 9999 Counts TRMS 1000V 10A Tester HT116
USD $39.99$49.99 (-20%)
Digital Multimeter NCV Auto-Ranging 9999 Counts TRMS 1000V 10A Tester Frequency Counter Voltmeter Ohmmeter Capacitance Temperature Meters, Measures AC DC Voltage Current Resistance Continuity
HT116 Digital Multimeter NCV Auto-Ranging 9999 Counts TRMS 1000V 10A Tester

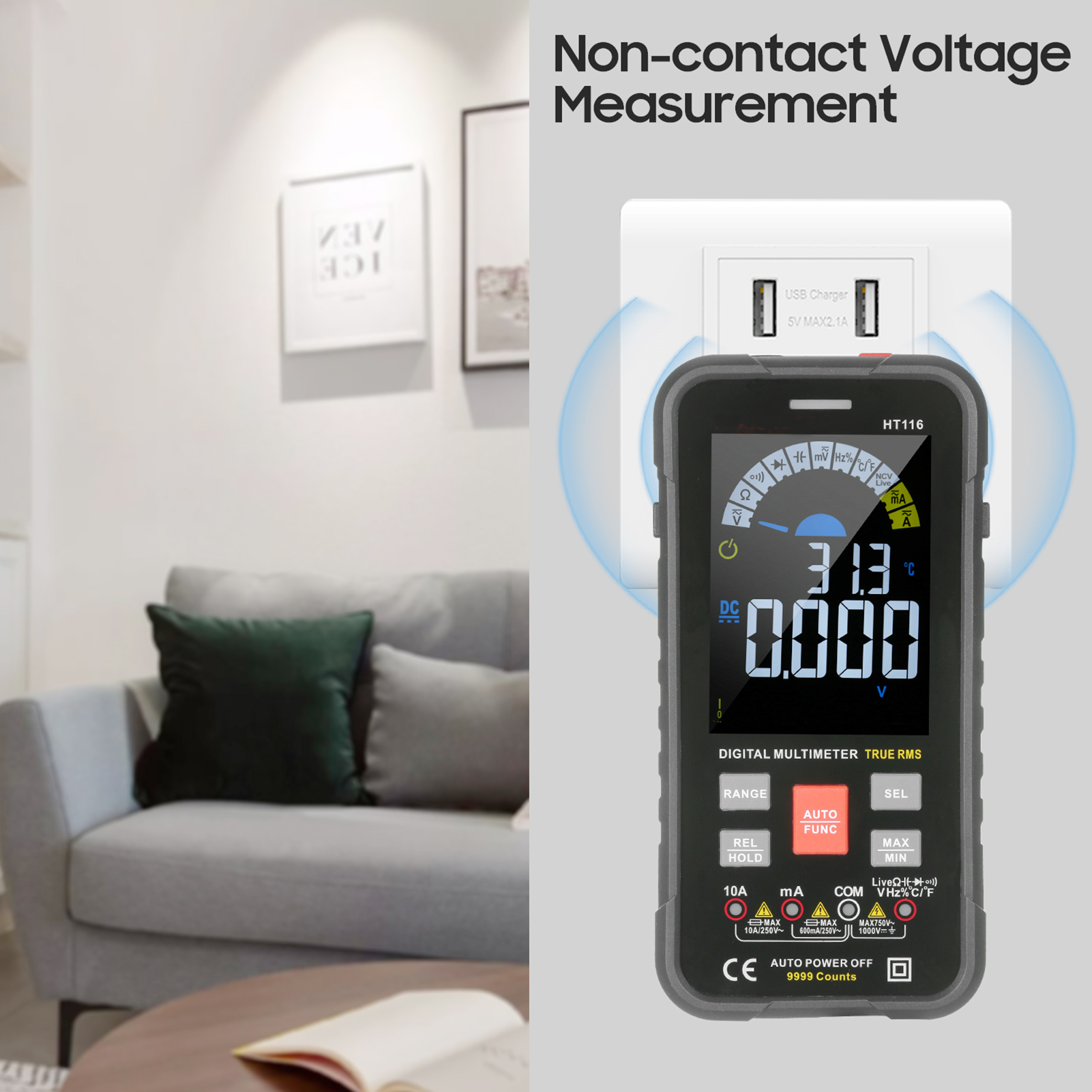

- Full Function Multimeter: the professional multimeter has various useful functions for measuring DC/AC voltage, DC/AC current, resistance, capacitance, frequency/duty, temperature, and diode test, continuity test, non-contact AC voltage detection, live wire detecting.
- Temperature Measurement: -40~1000℃/-40~1832℉ wide test range, use the included K-type thermocouple probe to test the temperature of the target object, ℃/℉ unit switchable.
- Smart(AUTO) Measurement: this measurement mode is default when power on. In this mode, DC/AC voltage, resistance, continuity can be measured, and the meter can automatically identify the measurement signal.
- Max/Min & Relative Value Measurement: under the manual range mode, it can measure the maximum and minimum value(invalid in capacitance, frequency/duty cycle, temperature, NCV/live gear), and relative value(invalid in continuity, frequency/duty cycle, temperature, NCV/live).
- Flashlight & Data Hold: auxiliary light up the working areas under the low lit conditions, and you can press the data hold button to keep the measured value unchanged to write it down leisured.
- Low Consumption & Auto-off: powered by 3pcs 1.5V AAA batteries (batteries not included), and if there is no operation in about 15 minutes, the tester will automatically shut down to save battery.
- Portable Pocket Size: compact designed is convenient to carry around, wrapped with a rubber sleeve to protect the multimeter once it fall from a height.

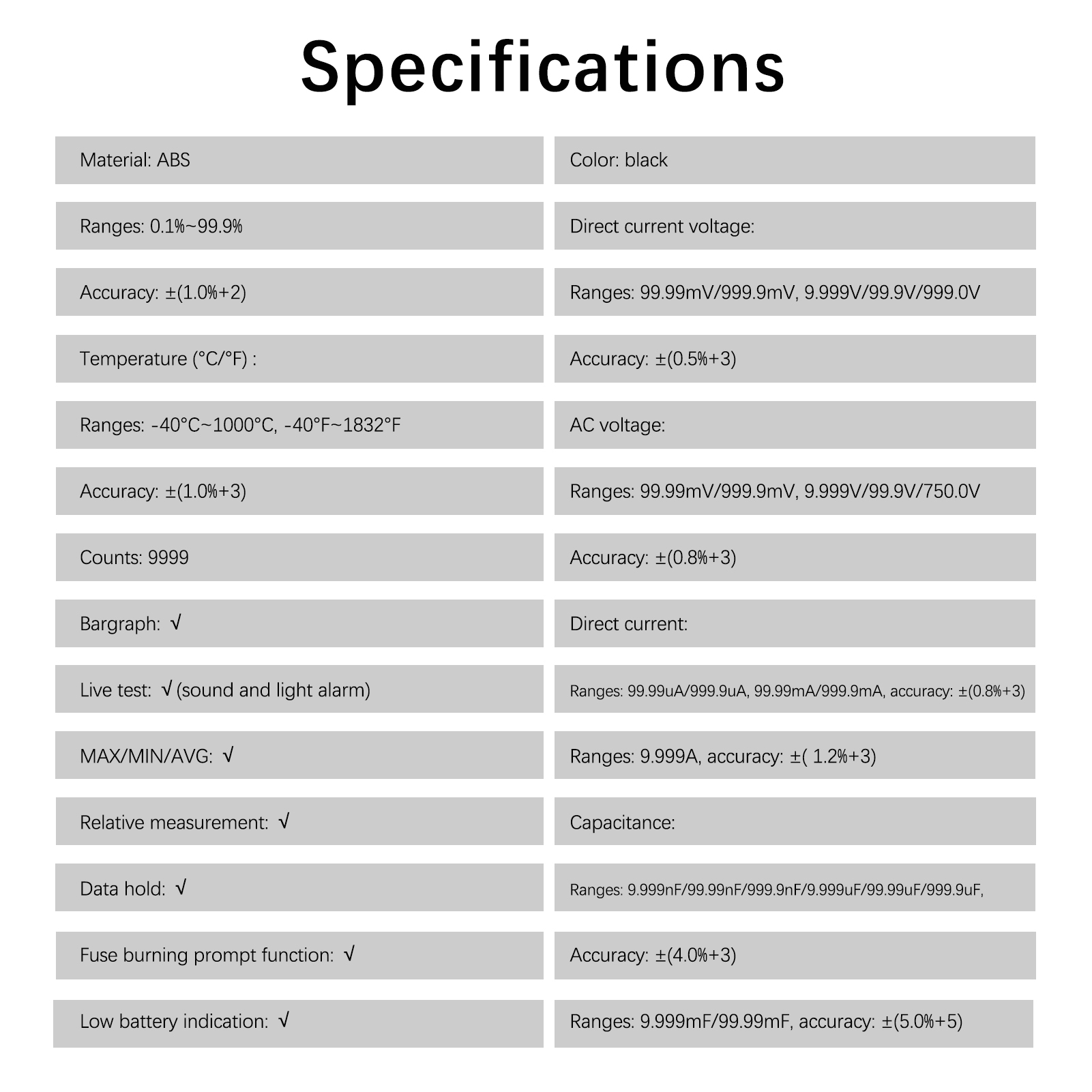

Specifications:
Model:HT116
DC Voltage:99.99mV/999.9mV/9.999V/99.99V/999.9V
AC Voltage:99.99mV/999.9mV/9.999V/99.99V/750V
AC/DC Current:9.999mA/99.99mA/600.0mA/9.999A
Resistance:99.99Ω/999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ
Capacitance:9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
Frequency/Duty:9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Temperature:-40~1000℃/-40~1832℉
Material:ABS
Display:9999 counts
Sampling Rate:Approx. 3 times/second
Over Range Indication:”OL”
Environment Condition of Using:CAT.IV 600V, CAT.III 1000V, pollution level 2, altitude<2000m
Working Temperature and Humidity:0~40℃(<80%RH, <10℃ non condensing)
Storage Temperature and Humidity:-10~60℃(<70%RH, remove the battery)
Power Supply:3 * 1.5V AAA batteries (batteries NOT included)
Item Size: 165 * 83 * 23mm / 6.49 * 3.27 * 0.91in
Item Weight: 249g / 8.80oz
DC Voltage:99.99mV/999.9mV/9.999V/99.99V/999.9V
AC Voltage:99.99mV/999.9mV/9.999V/99.99V/750V
AC/DC Current:9.999mA/99.99mA/600.0mA/9.999A
Resistance:99.99Ω/999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ
Capacitance:9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
Frequency/Duty:9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Temperature:-40~1000℃/-40~1832℉
Material:ABS
Display:9999 counts
Sampling Rate:Approx. 3 times/second
Over Range Indication:”OL”
Environment Condition of Using:CAT.IV 600V, CAT.III 1000V, pollution level 2, altitude<2000m
Working Temperature and Humidity:0~40℃(<80%RH, <10℃ non condensing)
Storage Temperature and Humidity:-10~60℃(<70%RH, remove the battery)
Power Supply:3 * 1.5V AAA batteries (batteries NOT included)
Item Size: 165 * 83 * 23mm / 6.49 * 3.27 * 0.91in
Item Weight: 249g / 8.80oz
More Details
- Sampling Rate:Approx. 3 times/second
- Over Range Indication:”OL”
- Environment Condition of Using:CAT.IV 600V, CAT.III 1000V, pollution level 2, altitude<2000m
- Working Temperature and Humidity:0~40℃(<80%RH, <10℃ non condensing)
- Storage Temperature and Humidity:-10~60℃(<70%RH, remove the battery)
- Power Supply:3 * 1.5V AAA batteries (batteries NOT included)
- Item Size: 165 * 83 * 23mm / 6.49 * 3.27 * 0.91in
- Item Weight: 249g / 8.80oz
Packing List
- 1 * 9999 Counts Digital Multimeter
- 1 * Pair of Probe
- 1 * Thermocouple
- 1 * Storage Bag
- 1 * User Manual
