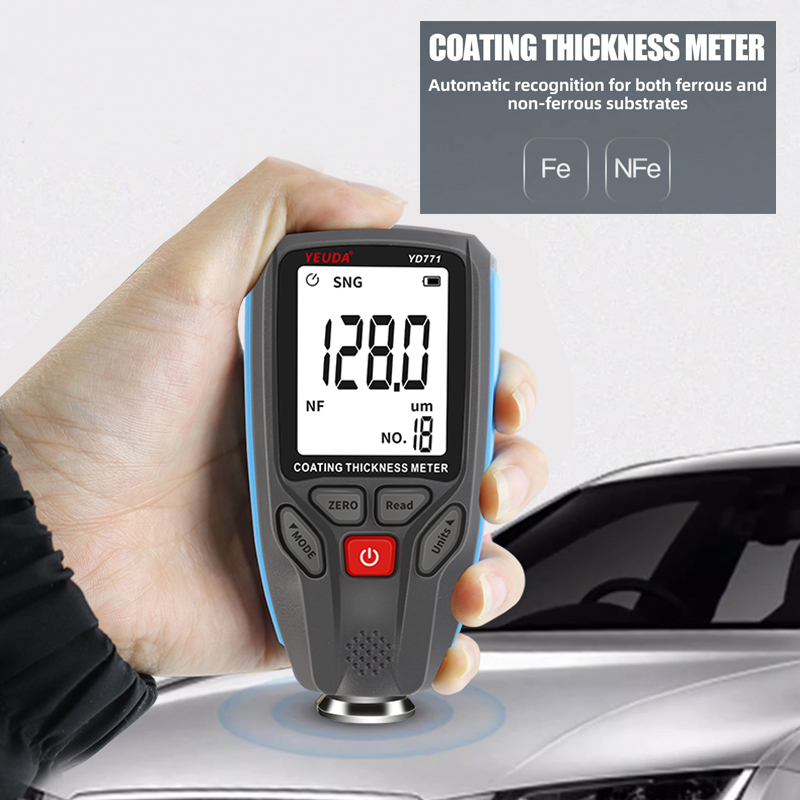

Digital Coating Thickness Gauge Car Paint Film Thickness Meter 0~1300um Fe & NFe Coating Tester with Backlight Display
USD $28.99$35.99 (-19%)
Coating Thickness Gauge Car Paint Film Thickness Tester 0 to 1300um Measuring Meter FE NFE for Automotive Metal Ceramic.
The thickness gauge is used to measure the thickness of the plated and coatedsheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.The gauge takes the precision integrated probe, and uses principles of electro-magnetic inductionand the eddy current effect, which automatically detects the attributeof substrates.
Product Features
1. High precision integrated probe F / N
2. CON /SNG Dual Measurement mode
3. Micron Proble Level
4. Self Calibration
5. 20 Groups of Data Storages
6. Auto power off in 15 mintues without operation
Product Details
1 Probe F:
Principle: : Magnetic Induction
Range: 0~1300um
Accuracy: ±(3%+2um
Resolution: 0.1um
minimum thickness of substrate：0.5mm(0.02″)
2 Probe N:
Principle: : Eddy Current
Range: 0~51.2mil
Accuracy: 0~51.2mil
Resolution: 0.01mil
minimum thickness of substrate：0.3mm(0.012″)
Units：um,mil
Calibration Points:ZERO/50/100/250/500/1000um
minimum curvature radius convex: 1.5mm
minimum curvature radius concave: 25mm
minimum measuring area:Diameter 6mm
Operation Environment: Temperature:0~40 ℃(32~104 F ) Humidity:20%~90%RH
Size: 102mmx52mmx25mm
Weight: 84g (without battery)
Power: 2PCS 1.5V AAA battery
Package contents
1x Coating Thickness Gauge
2x Substrates
5x Standard foils
1x User Guide
